Digital DS18B20 Temperature Sensor Module Kit Waterproof 100CM Sensor Cable
The China Custom Digital temperature sensors come with the original DS18B20, high quality in a stainless steel housing (6 * 30mm) and 3m #24 30# 2651, UL4411 28# Silicone cable (120 inches) in length.
1-Wire interface Digital DS18B20 Temperature Sensor, Usable temperature range: -55 to 125°C (-67°F to +257°F) · 9 do 12 bit . DS18B20 3M Cable Digital Temperature Thermal Waterproof Probe Sensor -55°C to +125°C compatible with Arduino and Raspberry Pi Open Source Programming!
|

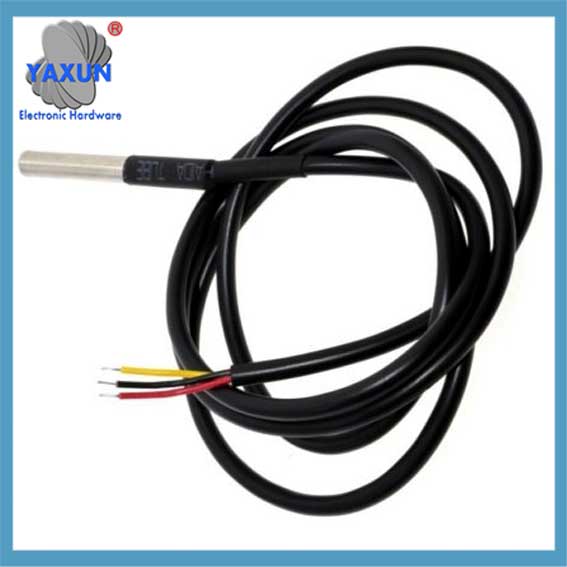

Digital Temperature 1-Wire Sensor DS18B20 Watertight, 1m |

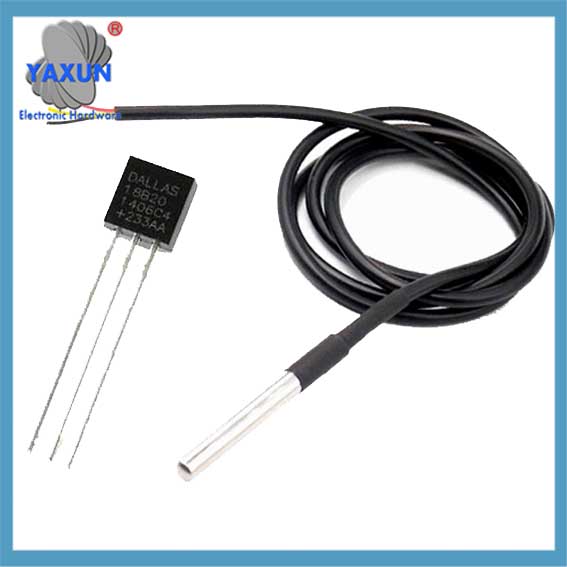

DS18B20 Temperature Sensor compatible with Arduino and Raspberry Pi |

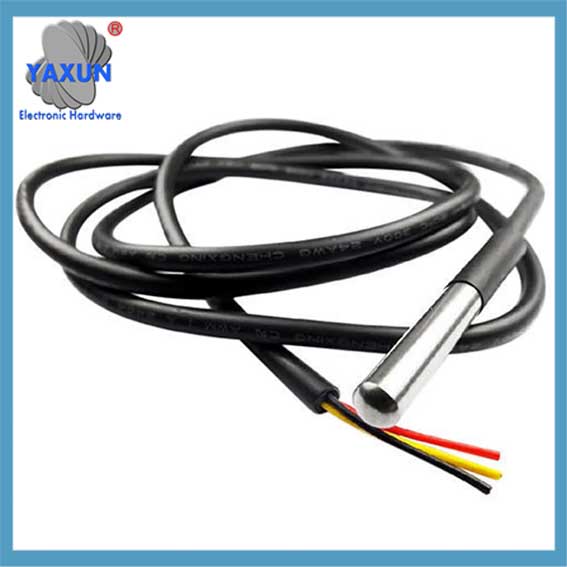

DS18B20 Digital Temperature Sensor -55 to 125°C (-67°F to +257°F) Module For Arduino |
The China Custom Digital temperature sensors come with the original DS18B20, high quality in a stainless steel housing (6 * 30mm) and 3m #24 30# 2651, UL4411 28# Silicone cable (120 inches) in length.
DS18B20 temperature sensor will enable you to easily measure and read the temperature via available and open-source libraries.
Our DS18B20 temperature sensor is perfect to use with Arduino and Raspberry Pi and other microcontrollers, and due to waterproof cable is also suitable for outdoor use.
Simple temperature readout through ready-to-use open source libraries for the DS18B20 temperature sensor! Wide measuring range from -55°C to +125°C and low deviation of only +/- 0.5°C between -10°C and +85°C!
| Product Name: | 1-Wire DS18B20 Temperature Sensor | Output: | Digital Sensor |
| Cable: | Customized | Voltage Supply: | 3.0V~5.5V |
| Operating Temperature: | -55°C ~ 125°C | Max Power: | 450mW |
| Shell Material: | Stainless Steel | Connector: | 2.54MM Connector |
| Drivepipe: | Heat Shrinkable Tube | Feature: | Waterproof |
| Visoka svetloba: | 5.5VDC DS18B20 Temperature Sensor use with Arduino and Raspberry Pi | ||
Opis izdelka
Stainless Steel Package Waterproof Probe NTC Digital Temperature Sensor DS18B20 Temperature Sensor
Output: Digital
Usage: Temperature measurement use with Arduino and Raspberry Pi
Cable length: Custom 0.5M, 1M, 2M or more
Theory: Resistance Sensor
Probe material: Stainless Steel
Natančnost: -10~+125℃, the accuracy is±0.5℃
Cable material: PVC, Silicone,PTFE
Description of Digital DS18B20 Temperature Sensor
DS18B20 temperature sensor is composed of DALLAS, Stainless steel probe, cable and connectors. DS18B20 is a commonly used digital temperature sensor, and its output is digital signal. It has the characteristics of small size, low hardware overhead, strong anti-interference ability and high precision.
Specification of Digital DS18B20 Temperature Sensor
| Digital chip | DS18B20 |
| Power supply | 3.0~5.5VDC |
| Resolution ratio | 9~12 bit, Corresponding distinguish temperature are 0.5℃,0.25℃,0.125℃ and 0.0625℃ |
| Tolerance | -10℃ to +125℃ ±0.5℃ |
| Treatment proccess | Waterproof |
| Operating temperature range | -50~+125℃ (when the temperature is -10~+85℃, the accuracy is±0.5℃) |
| Shell size | Diameter:¢6~¢9mm,length : 10mm~1000mm |
| Wire | UL Series(such as UL1007), Supply line number, using temperature range, outside diameter and material requirements. |
| Shell material | Stainless steel |
| Connector | Molex, JST, DuPont, CWB, CJT, U type etc. |
| Drivepipe | Heat shrinkable tube; PVC tube, glass fiber tube; |
| Connection mode | Black : GND， Yellow: DATA Red:VDD+ |
Characteristic of Stainless Steel Digital DS18B20 Temperature Sensor
1. Digital signal output
Wire interface Requires Only one port pin for communication. Requires no external components
2. High Accuracy
Operating temperature range:-55°C to +125°C (-67F to +257F), ±0.5°C accuracy from -10°C to +85°C
3. Data Line Power Supply
Can be powered from data line. Power supply range is 3.0V to 5.5V
4. Fast Response
Thermometer resolution is programmable from 9 do 12 bits.
5. Various Probe Design
Probe dimension :6*30mm, 6*50mm or customized
Application of Waterproof Digital DS18B20 Temperature Sensor
Water Temperature Monitoring, HVAC, Medical Instrument, GPS Oil Tank Temperature Monitoring
FAQ of DS18B20 Temperature Sensor
Q: Where physically on the device does the temperature measurement take place?
A: The DS18B20 does not sense temperature directly through the package. For all package types, the DS18B20 senses temperature primarily through the GND pin. Ensuring a good thermal connection between the GND pin of the device and the heat source you wish to measure will provide the best results.
Q: Is there a way to extend the temperature range of the DS18B20?
A: No, there is not a way to increase the range it reads. The DS18B20 reads with an accuracy of ±0.5°C from -10°C to +85°C and ±2°C accuracy from -55°C to +125°C.
