High-Accuracy NTC Temperature Sensor Probe & Cable Kit Price
NTC Thermistors sensor Resistors Values Inrush Current Limiter Temperature Sensor Kit (1KΩ, 2KΩ, 3KΩ, 4.7KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ,). Choose From Digital, Analog, Switches, and Thermistors sensor with Easy-To-Use Quick Search. Enhance Your Designs With High-Accuracy, Low-Power Consumption Temperature Sensors. NTC thermistor’s ability to achieve the highest accuracy is within the -50°C to 150°C range, and up to 250°C for glass. NTC is an acronym for Negative Temperature Coefficient. An NTC thermistor is a temperature sensor that uses the resistance properties of ceramic/metal composites to measure the temperature. Our full spectrum NTC sensors offer many advantages in temperature sensing including miniature size, excellent long-term stability, high accuracy and precision.
![]() Občutljiva NTC temperaturna sonda 3M 10K B3950 |
![]() thermistor sensor probe 1k 2k 2.7k 3k 5k 10k 15k 20k 30k 40k 47k 50k 100k 200k ohm |
![]() NTC-3950 3435 3977 Professional Waterproof Temperature Sensor Probe |
Ime predmeta: | Ntc Sensor | Dimenzija sonde: | 5x25mm |
Material sonde: | Nerjaveče jeklo | Resistor Type: | MF52 |
R25: | 10K±1% | B25/50: | 3950 |
Kabel: | 2464-24AWG Twin Wire | Priključek: | 2 Pin JST XH2.54mm Plug Or 3M-3Pin |
Dolžina kabla: | Prilagojeno | Izolacijska upornost: | >100MΩ @DC 500V |
Prenosna napetost: | 1500VAC | Ul: | ja |
Skladno z RoHS: | ja | Brez halogenov: | ja |
Visoka svetloba: | 3950K NTC Thermistor Sensor, 10K NTC Thermistor Sensor, 5×25 Stainless Steel Temperature Sensor |
Opis izdelka

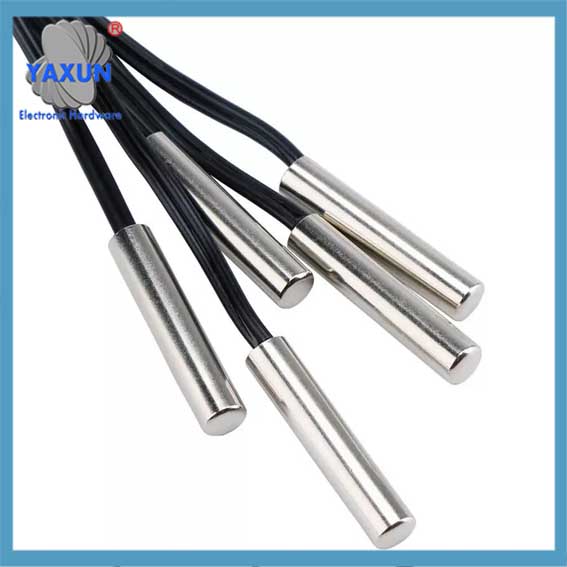

5×25 10K 3950K NTC Thermistor Sensor B3950 Sensitive Stainless Steel Temperature Sensor Probe
Opis izdelka
Ime predmeta: | ntc senzor, senzor termistorja, temperaturni senzor |
Resistor | MF52 |
Housing Probe | 5 x 25 mm / 0.2″ x 1″ (D*L) |
Dimenzija sonde | 5x25mm |
R25 | 10K |
Natančnost | 1% |
B Vrednost | 3950K |
Izolacijska upornost | >100MΩ |
Priključek | 2 Pin JST XH2.54mm vtič ali 3M-3Pin |
Merilno območje | -25°c do 125 °c (-13℉ do 257 ℉) |
Temp. shranjevanja | -10℃ ~ 40 ℃ |
specifikacije žice: | 2464-24AWG twin wire or customized, length customized |
NTC thermistors Sensor are used in a wide variety of applications:
The medical industry relies on NTC Sensor in various applications including catheters, dialysis equipment, and patient monitoring.
Appliances from dryers to coffee makers use NTC thermistors Sensor to accurately measure temperature.
HVAC and refrigeration equipment use NTC sensors to measure temperature in building controls and processes, resulting in increased efficiency and control.
Automotive and aerospace industries use NTC thermistors Sensor for test and measurement as well as production applications.
Lastnosti:
Rapid response,
Visoka stabilnost, reliability and sensitivity
Compact structure
Easy installation
Good water resistance
Wide temperature range of application
Dimenzija & Struktura
Model | Dimensions(mm) | Parameters
Specifikacije |
|
MF52A103F3470 | Φ5 | 10KΩ ±1% | B25/50℃=3470K |
MF52B103F3950 | Φ5 | 10KΩ ±1% | B25/50℃=3950K |
MF58 10K | Φ5 | 10KΩ ±1% | B25/50℃=3977K |
MF58 100K | Φ5 | 100KΩ ±1% | B25/50℃=3977K |
MF58 2K | Φ5 | 2KΩ ±1% | B25/50℃=3977K |
MF59 1K | Φ5 | 1KΩ ±1% | B25/50℃=4400K |
MF59 10K | Φ5 | 10KΩ ±1% | B25/50℃=4400K |
MF59 100K | Φ5 | 100KΩ ±1% | B25/50℃=4400K |
B57861S0103F040 | 0402 | 10KΩ ±1% | R25=10KΩ, B25/50℃=3960K |
B57891S0103F040 | 0402 | 10KΩ ±1% | R25=10KΩ, B25/50℃=3977K |
B57861S104F040 | 0402 | 100KΩ ±1% | R25=100KΩ, B25/50℃=3960K |
B57891S104F040 | 0402 | 100KΩ ±1% | R25=100KΩ, B25/50℃=3977K |

NTC Temperature Sensor Dimension & Struktura
