6 x 30 mm glas & Ceramic Fuse classification
According to the protection form, det kan delas upp i: overcurrent protection and overheat protection. De 6 x 30 mm glas & Ceramic fuse used for overcurrent protection is the fuse usually called (also called current limiting fuse). 6 x 30 mm glas & Ceramic Fuses used for overheating protection are commonly referred to as “temperature fuses”. Thermal fuses are divided into low melting alloy shapes, temperature-sensitive trigger shapes, memory alloy shapes, etc. (Thermal fuses are used to protect heating appliances or appliances that are prone to heat from overheating. Till exempel: hair dryer, elektriskt strykjärn, riskokare, elektrisk spis, transformator, electric motor, etc .; it responds to the rise in temperature of electrical appliances and does not care about the working current of the circuit. Its working principle is different from “current-limiting fuse”).
According to the scope of use, det kan delas upp i: power fuses, machine tool fuses, electrical instrument fuses (electronic fuses), fordonssäkringar.

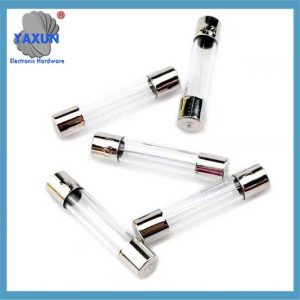

![]() 6mm x 30mm Fuses-Electronic Components and Accessories |

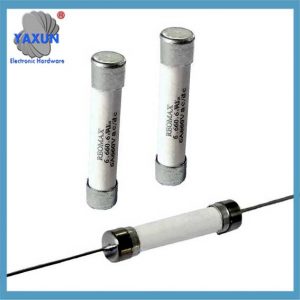

![]() 6×30 6.35×32 High Voltage Ceramic Fuse 200mA-50A 500V 600V 750 1000V |

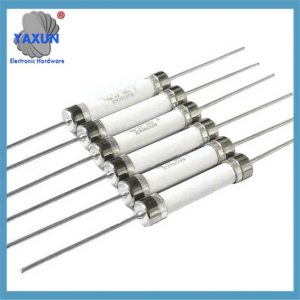

![]() 6×32 Ceramic Fuse Tube Slow Blow with Axial Leads |
Specifikationer
- is_customized: Ja
Safety Standards: f1al250v f2al250v f3al250v 5al250v f1al f2al f3al f3a f10a 5V 24V 32V
- Brytkapacitet: 6x30mm Current 0.5 1 2 3 4 5 6 8 10 12 15 A Amp Electric Fusing
Användande: 250 220 125 V Volt Small Round Cylindrical Light Fuse Protection 500mA
- Model Number:6*30mm Electronics Mini Cartridge Quick Acting Blo Types Cutoff Fusee
Brand Name: YAXUN
- Origin: Mainland China
Certifiering: UL,KC
- Certifikat: (UL)(PSE JET)(CSA
Dimensionera:6mm x 30 mm
- Driftstemperatur: -40 – +125°
According to volume, det kan delas upp i: large, medium, small and micro.
According to the rated voltage, det kan delas upp i: high voltage fuse, low voltage fuse and safety voltage fuse.
According to breaking capacity, det kan delas upp i: high and low breaking capacity fuses.
Avsikter att utvecklas, Att använda teknik för att gynna samhället
According to the melting speed, det kan delas upp i: Very slow fuse (usually represented by TT), slow fuse (usually represented by T).
Medium speed fuse (usually M), fast fuse (usually F), very fast fuse (usually FF).
According to the standard, det kan delas upp i: European fuse, American fuse, Japanese fuse.
According to type, det kan delas upp i: Current fuses (SMD fuses, miniature fuses, blade fuses, tubular fuses), Termisk säkring (RH [block type], RP [resistance type], RY [metal case]), Återställbar säkring (plug-in, laminated, patch).
Avsikter att utvecklas, Att använda teknik för att gynna samhället
Brytkapacitet | Material | Driftstemperatur | Lödningsförhållanden |
50 amperes at 125V/250V AC (250mA – 10A) | Säkringskropp – glasrör Ändlock –nickelpläterad mässing Hårpiska–tennpläterad koppar på nickelpläterad mässingslock |
-40℃~+125℃ | Våglödning:260℃,≤5S Handlödning: 360℃,≤1S |

3AB Slow Blow 6 x 30 mm (1-1/4″) Keramisk säkring
Funktionella egenskaper
Testar ström | Blåstid | |
Min | Max | |
100% | 4 timme | – |
200% | 1 s | 60 s |
Godkännanden (○ I väntan på ● Godkännanden)
Aktuellt betyg | Spänningsvärde | Normal smältning I2T(A2sek) |
Godkännanden | |
UL | ||||
200mA | 125V/250V | 0.11 | ● | |
250mA | 125V/250V | 0.14 | ● | |
300mA | 125V/250V | 0.20 | ● | |
315mA | 125V/250V | 0.23 | ● | |
350mA | 125V/250V | 0.27 | ● | |
400mA | 125V/250V | 0.38 | ● | |
500mA | 125V/250V | 0.50 | ● | |
600mA | 125V/250V | 0.72 | ● | |
630mA | 125V/250V | 0.9 | ● | |
750mA | 125V/250V | 1.2 | ● | |
800mA | 125V/250V | 1.6 | ● | |
1A | 125V/250V | 2.4 | ● | |
1.25A | 125V/250V | 3.5 | ● | |
1.5A | 125V/250V | 4 | ● | |
2A | 125V/250V | 7.2 | ● | |
2.5A | 125V/250V | 9.6 | ● | |
3A | 125V/250V | 16 | ● | |
3.15A | 125V/250V | 17.8 | ● | |
3.5A | 125V/250V | 22 | ● | |
4A | 125V/250V | 28 | ● | |
5A | 125V/250V | 45 | ● | |
6A | 125V/250V | 62 | ● | |
6.3A | 125V/250V | 70 | ● |
