ICB 100 20En ~ 100 Amp In-line 4/8 AWG Built-in Circuit Breaker with Manual Reset

ICB-100 100 Amp Agu 4/8 AWG In-line Fuse Holder Built-in Circuit Breaker for Car Auto Marine Boat Stereo ; Number Of Poles. 2 ; UPC. 811234015674 097835321592 ; Product Dimensions, ‎8 x 5 x 2 tum.

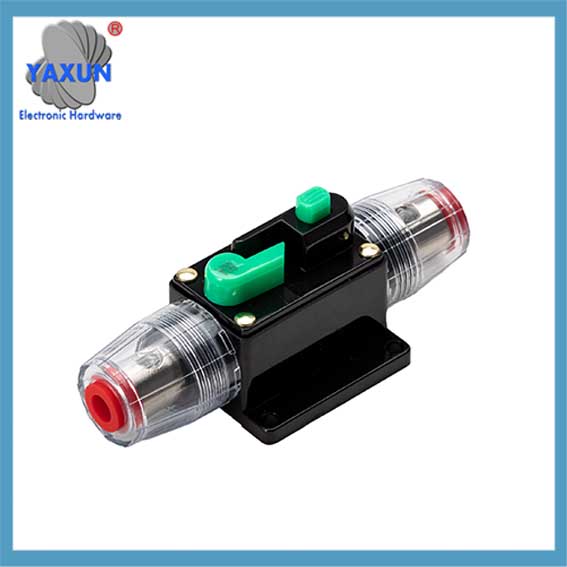

ICB100 4-8 AWG 100 Amp in-line Circuit Breaker with Manual Reset

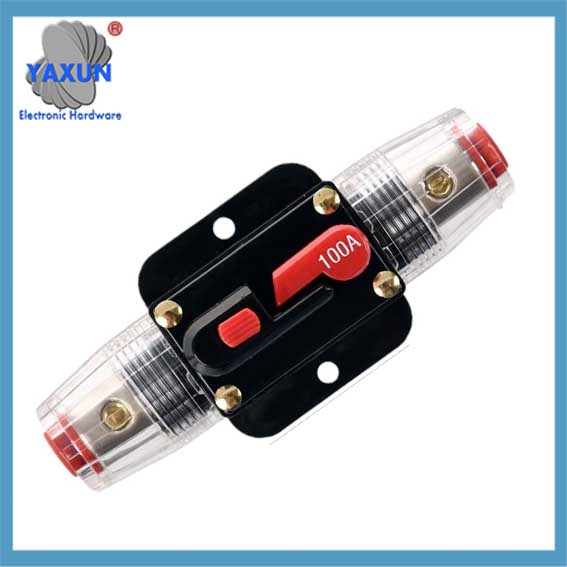

Absolute ICB-100 80 Amp Agu Fuse Holder Built-in Circuit Breake

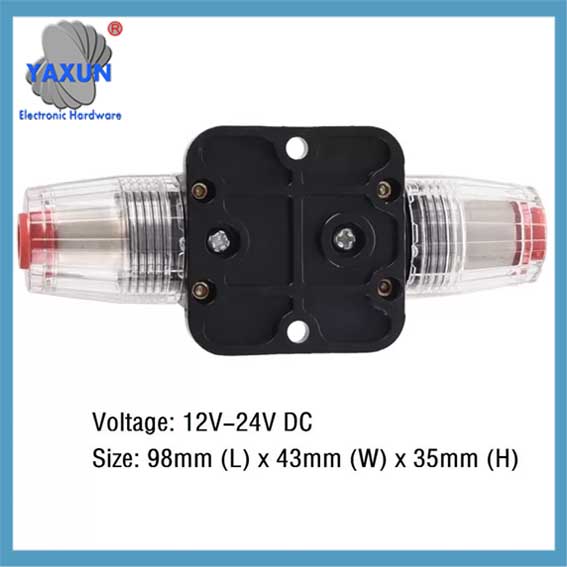

Inline Fuse Car Audio Circuit Breaker Manual Reset Fuse Holder For Overload Protection

The Absolute 100 Amp Circuit Breaker will work as a substitute to your system’s 100 amp fuse(s). If your amplifier(s) fuses add up to 100 amps in your system, this one is for you.

The best thing about a ICB-100 circuit breaker is once you buy it, it will not “blow” as is the case with fuses.

With the click of a button, you can reset the circuit (no switching of fuses, etc.) and your system will be pounding seconds later!

Beskrivning
For safety of auto electronics. Prevent currents from being too high and damaging automotive electronic equipment.

Product Specification:
1. Materials: ABS, zinc alloy
2. Body Dimension: 3.85”x 1.69” x 1.37”
3. Spänningsvärde: 12-24I DC
4. Net weight: 80g
5. Suit gauge wire: 1-15 AWG
6. Omgivningstemperatur: -10C to 50C (-14F to 122F).
7. Ampere Rating: 20A 30A 40A 50A 60A 70A 80A 100A 125A 150A

(rating):10A-60A
(Input Power):125VAC/250VAC/32VDC 50-60Hz
(Withstand voltage strength):1500VAC/1min ≤0.5mA(1500VAC/min,the leaked current is less than≤0.5mA)
(Isolationsmotstånd):500VDC1Min≥100MΩ
(Rated short-circuit capacity):125VAC/1000A，250VAC/1000A
(Rated breaking capacity): 6 times rated current
(reset): Manual Push Reset

(Tripping characteristics)
(The test environment temperature): 25℃±3℃
(200% of Ratcd Currcnt):8-40s” 8-40s” Seconds Trip
(150% of Rated Current): Trip within 1 Hour
(100% of Rated Current): Hold,No Trip

Funktioner:
Manual push button
Self-testing
Reset type: Switchable Manual Reset
Easy to operate with manual reset arm
No need to change fuses
Can be mounted on panels or firewalls

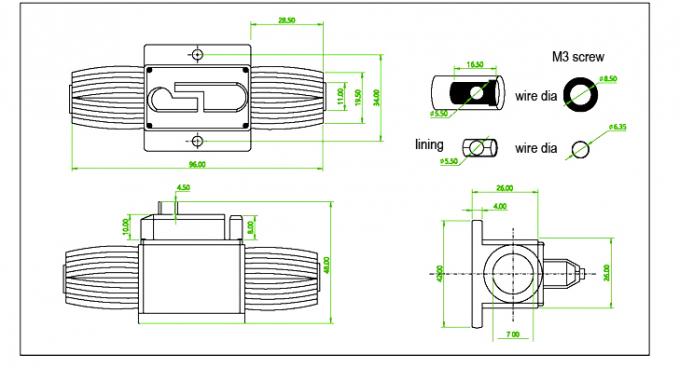

ICB100 4-8 AWG 100 Amp in-line Circuit Breaker Drawing

Application:
Suitable for car audio/video system, Båt, trucks, buses, RV’s, ATV Winches and marine and DC sound amplifier system overload protection

Standardpaket
20pcs per box, 100pcs per carton

Leveransperiod:
EXW, DDU, DDP, C&F, FOB

Leveransmetoder:
International Express, Med flyg, Till sjöss

Warmly Reminder:
1.Please use it under right work temperature, to avoid it is too heat and stop work.
2. Please correctly push the button to avoid damage the Circuit Breaker.
