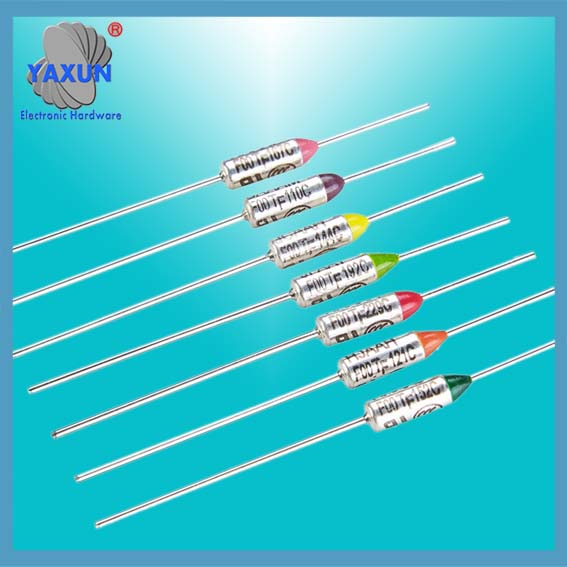

Mechanical resistance thermal cutoffs Devices (DF SF Series 10amp)
Subsequently, the voltage between the contacts of the thermal cutoff and the DC circuit rises to ensure that the DC circuit is disconnected. Through the present invention, the problem that the thermal cutoff in the DC circuit cannot effectively cut off the circuit is solved, and the effect of improving the circuit safety is achieved.
Kategori: Termisk säkring
Taggar: Temperatursäkring, Termisk avstängning, Termisk säkring, termiskt skydd

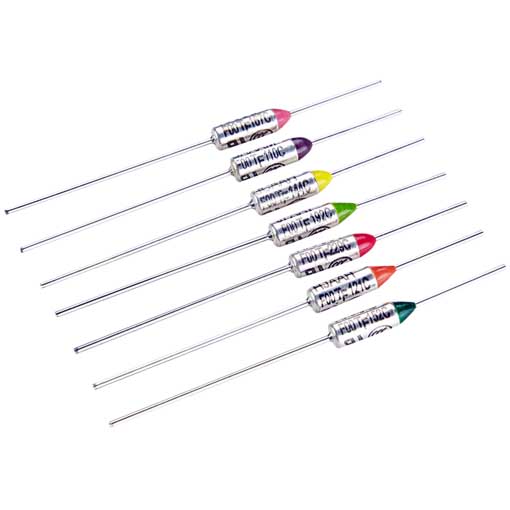

SF DF Series thermal cutoff assembly and equipment. The thermal cutoff assembly includes: a thermal cutoff connected to a DC circuit. The thermal cutoff is connected in parallel with a capacitor or a capacitor loop, which is formed by a plurality of capacitors connected in series. The capacitance of the capacitor or the total capacitance of the capacitor loop satisfies the following conditions: at the moment when the thermal cutoff is disconnected, the DC circuit charges a capacitor or a capacitor loop. Subsequently, the voltage between the contacts of the thermal cutoff and the DC circuit rises to ensure that the DC circuit is disconnected. Through the present invention, the problem that the thermal cutoff in the DC circuit cannot effectively cut off the circuit is solved, and the effect of improving the circuit safety is achieved.
Operating temperature range:
SF type is 73 ℃ ~ 240 ℃, SM type is 76 ℃ ~ 187 ℃. There are various products with a rated current of 0.5A to 15A. Safety certifications include: UL, CSA, VDE, BEBA, PSE, JET, CQC … certificates. Comply with EU ROHS environmental protection directive requirements. NEC temperature fuse has the function of detecting abnormal temperature and cutting off the circuit. It can detect abnormal temperature rises of household or industrial electrical products and quickly and timely cut off the circuit, which can prevent the fire from being unburned.
NEC thermal fuse is a component that provides very reliable protection in over-temperature conditions. It has small volume, large overcurrent, non-reset, stable performance, convenient installation, and has a range of humidity settings and carrying capacity to choose from to meet customer application requirements.
Products are widely used in:
Various motors, copiers, fax machines, HID ballasts, fluorescent lighting ballasts, transformatorer, laddare, battery packs, heating appliances, electric irons, hot air blowers, electric stoves, rice cookers, electric kettles, coffee makers, Ventilation fans, electric fans, electric sewing machines, water heaters, power converters, power plug sockets, refrigerators, air conditioners, automotive air conditioners, meters, equipment, etc. are over-temperature protected.
LE series (15A)
Product Features
Using temperature fuse metal casing and sense temperature organic particles.
Belonging unrecoverable type thermal fuses. Temperature fuse melting off, even if the surrounding temperature falls, it will not be turned on.
No lead (Pb) and cadmium (Cd), and comply with RoHS.
REACH does not contain the specified 46 categories SVHC (SVHC).
Product Size
Cable length | Dimensions (mm) | ||||
A | B | C | D | E | |
Standard LE | 4.0±0.1 | 20±3 | 10.1±3 | 35±3 | 1.0±0.1 |
Long LE(L) | 4.0±0.1 | 38±3 | 10.1±3 | 35±3 | 1.0±0.1 |
Model | Rated temperature Tf(℃) |
Operating temperature (℃) |
Rated current (A) |
Rated voltage (V) |
maintaining the temperature Th(℃) |
Maximum temperature limit Tm(℃) |
LE070 | 73 | 71±2 | 15.0 | AC250 | 50 | 150 |
LE073 | 77 | 74±2 | 15.0 | AC250 | 50 | 150 |
LE080 | 84 | 80±2 | 15.0 | AC250 | 50 | 150 |
LE090 | 94 | 91+3/-2 | 15.0 | AC250 | 65 | 150 |
LE095 | 99 | 95±2 | 15.0 | AC250 | 71 | 150 |
LE108 | 113 | 109±2 | 15.0 | AC250 | 85 | 150 |
LE117 | 121 | 117±3 | 15.0 | AC250 | 95 | 160 |
LE124 | 128 | 124±3 | 15.0 | AC250 | 102 | 160 |
LE128 | 133 | 129+3/-2 | 15.0 | AC250 | 105 | 160 |
LE138 | 142 | 138±3 | 15.0 | AC250 | 110 | 160 |
LE152 | 157 | 152±2 | 15.0 | AC250 | 130 | 175 |
LE169 | 172 | 167±2 | 15.0 | AC250 | 145 | 190 |
LE189 | 192 | 189±3 | 15.0 | AC250 | 165 | 300 |
LE213 | 216 | 213±2 | 15.0 | AC250 | 190 | 300 |
