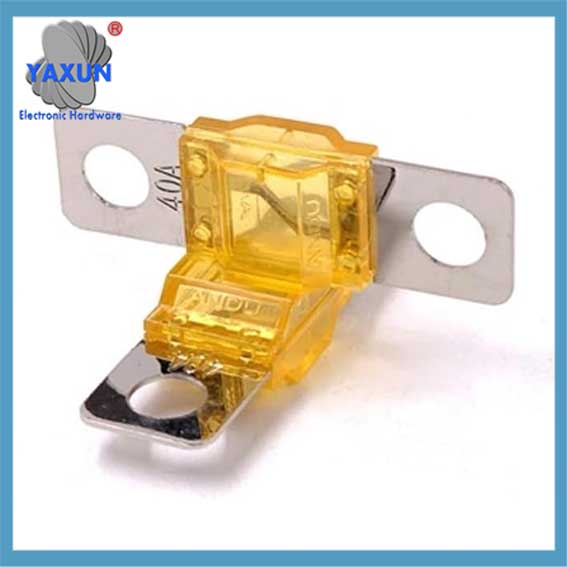

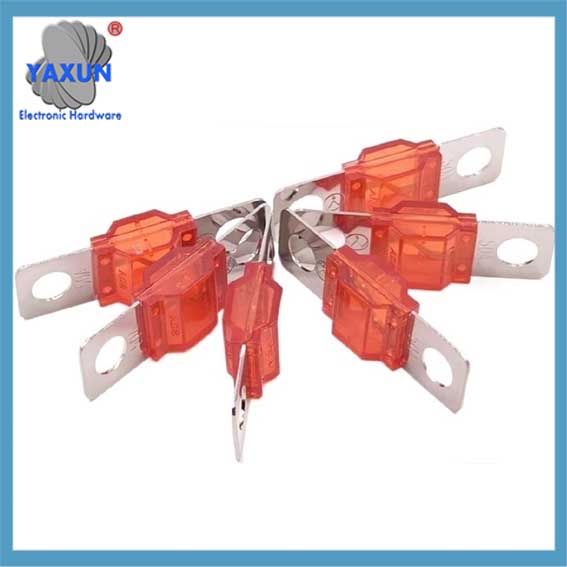

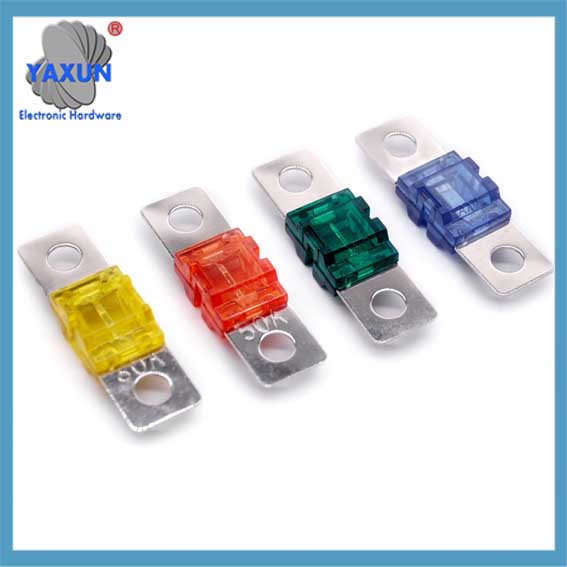

China Custom Ans Midi Automobile Fuse M5 M6 Bolt Fixed Fuse 32V
หมวดหมู่: สลักเกลียวลงฟิวส์
แท็ก: ฟิวส์รถยนต์, ฟิวส์ไฟฟ้า, ฟิวส์เป่าเร็ว/ช้า
Plug Fuses Midi fuse. An automotive fuse is an electrical component that is designed to protect other components, devices, and wiring from any damage. MIDI Fuse ANS-50 Amp 32VDC Automotive ; Brand. KQEC . A Plus Parts House Black Style Bolt-Down Assortment Fuses 498 Series MIDI 32V ANS-S Fuse / Auto Fuse Kit. PC(สีดำ)+PBT(สีดำ) .
ชื่อรายการ: | M5 Bolt ANS MIDI Fuse | Part No.: | ANS |
Total Length: | 42 Mm | Hole Distance: | 30 Mm |
Hole Diameter: | 5.4 Mm | ประเภทการติดตั้ง: | Bolt Down |
Interrupting Rating: | 2000ก | Shell Material: | PC/PA66 |
วัสดุเทอร์มินัล: | Nickel Plated Zinc Alloy | ระดับแรงดันไฟฟ้า: | 32V 58V |
Current Ratin0.1A~20Ag: | 30A 40A 50A 60A 70A 80A 100A 125A 150A 200A | เป็นไปตามข้อกำหนด RoHS: | ใช่ |
Halogen Free: | ใช่ | MPQ: | 100pcs Per Bag |
Operation Temp: | -40˚C To +125˚C | Standard: | ISO8820-5 |
รายละเอียดสินค้า
Product Name | M5 Bolt ANS MIDI Fuse |
Types | Bolt-down |
Volt Rating | 32V dc |
Amp Rating | 30A 40A 50A 60A 70A 80A 100A 125A 150A 200A |
Blow Types | standard |
Environmental | Lead and Ph free |
Package | 100pcs per bag |
Specification | Parameters |
Interrupting Rating: | 2000ก |
ระดับแรงดันไฟฟ้า: | DC 32V 58V |
Temperature Range: | -40°C to +105°C |
Terminals: | nickel plated zinc alloy |
Housing Material: | PC/PA66 |
Complies with: | IS08820-5 |
Blowing Performance
TESTING CURRENT | BLOW TIME LIMIT |
100% | 100 Hr. minimum |
150% | 90ส— 3600ส |
200%(≥150A) | 3ส — 100ส |
300% | 0.3s-3s |
350%(≥150A) | 0.3s-5s |
