ชุด 16 Mechanical Products Circuit Breakers for Ships, Medical Equipment

China Custom Series 16 Mechanical Products 1/4″ and 3/8″ Circuit Breakers for Ships, Medical Equipment, Uninterruptible Power, gasoline powered boats.

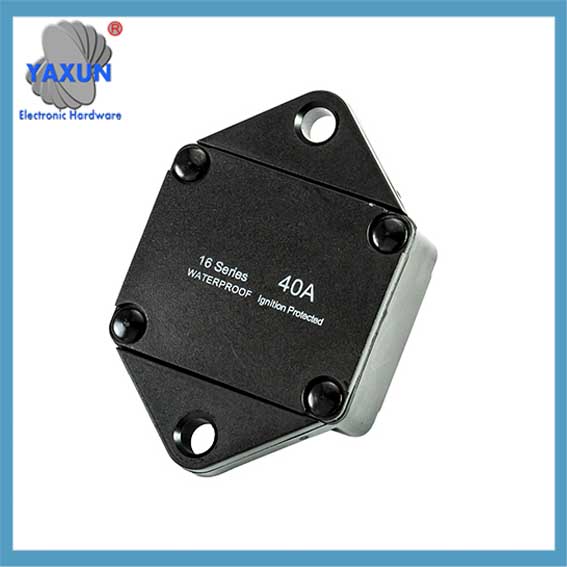

16F series waterproof circuit breakers

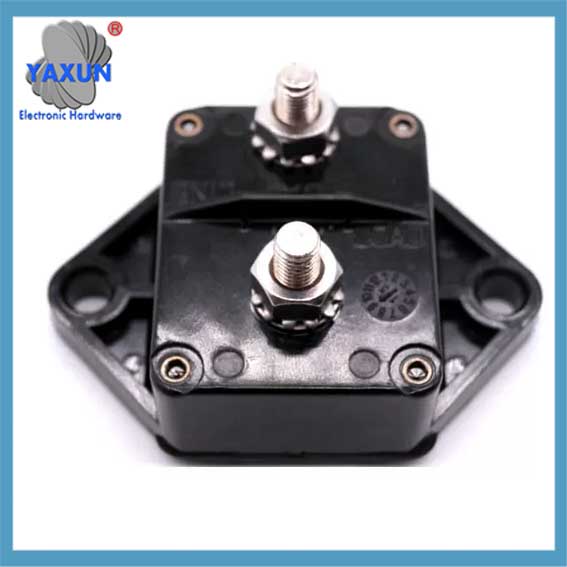

16F series E94 Car Circuit Breakers Panel Mount Auto Reset Circuit Breaker

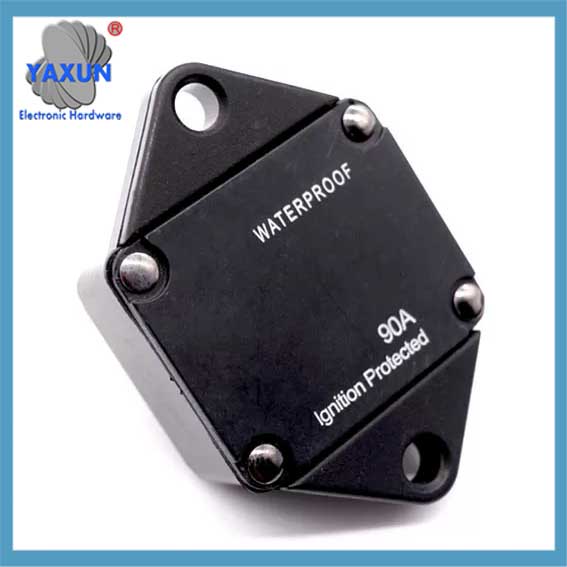

100 Amp hi-amp auto reset circuit breaker mounted panel application

16F Series 174-S0-050-2 Series 17 Surface Mount Waterproof Circuit Breaker ( E91, E93, E94, E96, E97, E99, E91X, CB02,
) is a single-pole, one-key reset thermal circuit protector, which has the functions of switch and protector. Commonly known as Hi-amp Circuit breaker/ Heavy Duty Circuit breaker.

The body of the 16F series is bakelite, with dustproof and waterproof design. It is an IP67 waterproof overload protection device. The terminal part is made of stainless steel studs, which are rust-proof and high-strength. There are two specs: 1/4″ and 3/8″.

16F series waterproof circuit breakers have a current of 30A-300A, suitable for marine, RV Cars, truck tailboards, ATVs, winches, electric anchors, battery protection, vehicle-mounted inverters, ฯลฯ.

YAXUN’s waterproof circuit breaker has passed UL1500 ignition protection certification and RoHS environmental protection certification, ฯลฯ; its quality is fully guaranteed. If you are interested in our products, please do not hesitate to contact us!

Key Features
Following SAE J553 Standard, SAE J1625 Standard and ABYC-E11 Standard.
Dustproof and waterproof design, IP67 waterproof rating.
Ignition Protected complies with SAE J1171 & แอล 1500 TUV CE Standard.

Ratings
(Current rating range)：25A-150A
(Input voltage rating )：12/24/32/48กระแสตรง
（Reset）: Auto Reset
(Interrupting capacity): 2000A/32VDC Type I
2000A/14VDC Type II
1500A/48VDC Type III
(Dielectric Strength):>1500VAC/min
(Insulation Resistance):>100MOHM(DC 500V)
(Degree of protection):IP66
(Reset-Time):<60sec
（Operating Temperature Rating):-30℃-80℃
(Storage Temperatur Rating):-30℃-140℃)

Testing Performed
Current test : 200% current full-inspect test
Corrosion : 96hrs salt-spray
Torque test : Higher than 10kg*f
Durability test : 10,000 mechanical life tests

Safety Certification
Electrical appliances certification : แอล, ABYC, SAE
Environmental standards : RoHS

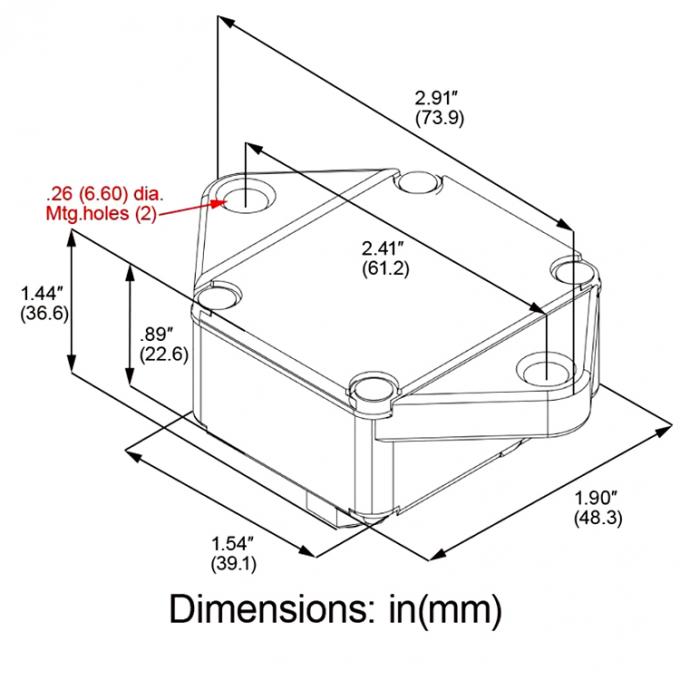

Drawing of 16F series E94 circuit breaker

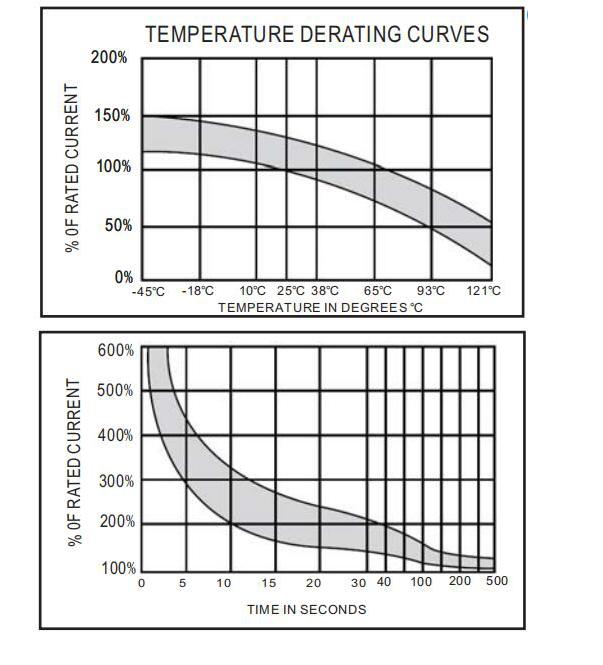

TEMPERATURE DERATING CURVES of 16F series E94 circuit breaker

คุณสมบัติ
Single Pole Thermal Type Breakers
Typically used in auxiliary and accessory circuits in truck, bus’, RVs and marine systems, battery chargers, DC audio systems, compartment and bilge area applications.
ช่วงอุณหภูมิในการทำงาน:-32°C to 82℃
Storage temperature range: -34°C to 149°C
วัสดุ: Black UL 94V-0 thermoplastic.
Thermoplastic elastomer stud insulators areprovided on covered units with F-style (surface-mount) bases
Marking:Standard marking includes amp ratings and part numbers.Custom markings also available.
Termination: 1/4-28 หรือ 3/8-16 threaded studs
Torque Rating: 50 in-lbs (5.6N•m) max
Mounting Torque: 5.6N•m.Threaded insertoption has a max torque of 25 in-lbs (2.8N•m).
เกรดการป้องกัน: lP67
Compliances: SAE J1625;ABYCE-11;ซีอี;SAEJ1171 (ignition protected)
Reset type: Manual Reset – Switchable

Standard Package
1pcs per bag, 100pcs per carton

Shipping Term:
EXW, DDU, DDP, ค&เอฟ, FOB

Shipping Methods:
International Express, By Air, By Sea
