空調測溫NTC感溫探頭
YAXUN Developing air conditioner gas NTC sensor probes assembly that comply with latest international standards. The air conditioner temperature sensor is a negative temperature coefficient thermistor, referred to as NTC, also known as a temperature probe.
NTC Thermistor Probe Temperature Sensor 10K Ohm for air Conditioning System. Used for the detection of fresh air, return air, air supply temperature and humidity in air conditioning systems. Can provide various signals such.
YAXUN Developing air conditioner gas NTC sensor probes assembly that comply with latest international standards. The air conditioner temperature sensor is a negative temperature coefficient thermistor, referred to as NTC, also known as a temperature probe. Reliable and accurate in detecting a wide range of gases, including R32 and R454B。Water-Resistant。High Sensitivity。Long Lifespan。Easy Install。Certified Safe。The resistance value decreases with the increase of temperature, and increases with the decrease of temperature.
產品名稱: Air conditioning ntc temperature sensor, ntc temperature sensor
型: YX-9104
輸出信號: resistance signal, 10k at 25°C
Fluid temperature: 0~70°C <;71 °攝氏度
Sensing element: 熱敏電阻 (NTC公司)
Product use: Used for the detection of fresh air, return air, air supply temperature and humidity in air conditioning systems.
特徵:
Separable, quick disassembly
High precision temperature measuring element
Can provide various signals such as resistance, voltage, current, 等.
Multi-range range for various measurement needs
|

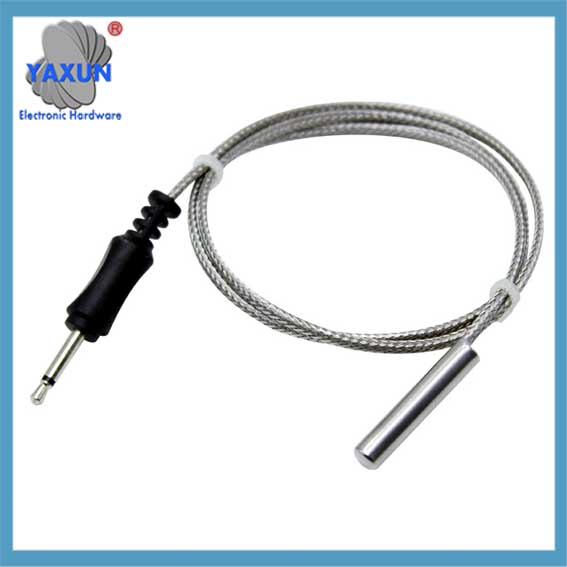

NTC Thermistor Probe Temperature Sensor 10K Ohm for air Conditioning System |

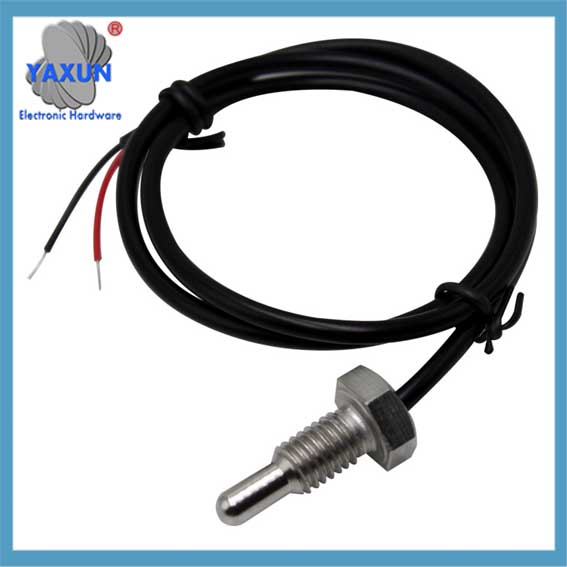

1 咪錶不銹鋼10k 3950 NTC冷氣/恒溫器/汽車用熱敏電阻傳感器探頭 |

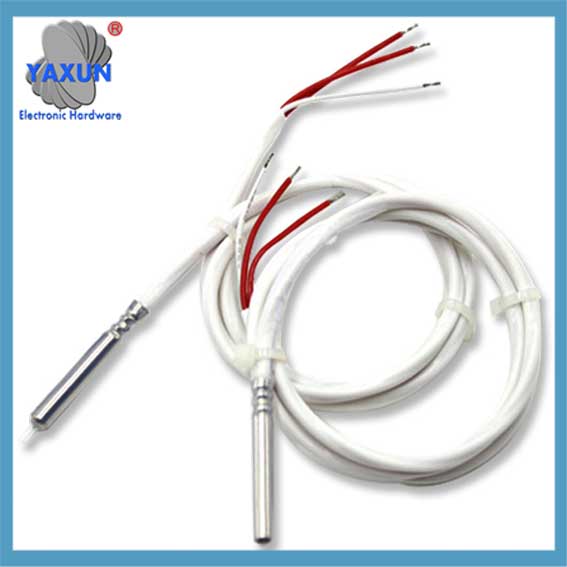

Air Conditioning Temperature Sensor Probe 5k~100k NTC |
描述
| 類型: | Air conditioning ntc temperature sensor | B25/50型: | 3950K, 3977K, 3435K |
| 傳感器頭: | O型圈, 金屬叉, 注射管, NPT, M16系列, 無污染鋼管 | 線: | CL2 PT4，#24 2466,#28 1332 |
| 用法: | 溫度傳感器, 即熱式熱水器, 熱水器, 空調, 雪櫃, 噴泉, 電磁爐, 咖啡機 | Pn (額定功率): | 50兆瓦 |
| 高光: | 爱普科斯（ EPCOS ） / AVX / SEMITEC / 斯荏 / 三菱 / OHIZUMI NTC熱敏電阻傳感器, 3977K NTC溫度傳感器, 熱敏電阻水溫探頭 | ||
Custom Air conditioning ntc temperature sensor Wire 0.5M~10M Theory Signal Output Origin.
| 規格名稱 | 範圍 | 檢測條件 |
| R25系列(標稱電阻值) | 1k, 2k, 2.7k, 3k, 5k, 10k, 15k, 20k, 30k, 40k, 47k, 50k, 100k, 200k (爱普科斯（ EPCOS ） / AVX / SEMITEC / 斯荏 / 三菱 / 大泉NTC熱敏電阻) | 恒溫25°C±0.05°C |
| R25允許嘅差異(%) | ±1，±2, ±3, ±5, ±10 | 恒溫25°C±0.05°C |
| B25/50或B25/85(材料系數)(熱敏感指數) | 2500~5000K | 恒溫25°C±0.05°C
恒溫85°C±0.05°C |
| B25/50值允許差異(%) | ±1，±2 | 恒溫25°C±0.05°C
恒溫50°C±0.05°C |
| ∫(耗散系數) | ≥0.8mw/°C | 空氣中嘅靜電 |
| T(熱時間常數) | ≤25S | 空氣中嘅靜電 |
| 鉭(工作溫度) | -30°C~+120°C | |
| Pn (額定功率) | 50兆瓦 | 在工作溫度內 |
| 外殼和頭部 | 叉頭, O形環頭,水滴, 金屬錶殼, 螺紋銅外殼, 注射頭, 無污染鋼管, 或根據客戶嘅圖紙 | |
| 引線 | #24 30# 2651, UL4411認證 28#, 雙線導體等, 或根據客戶要求. | |
| 終端 | 可根據各種端子嘅要求進行鉚接 |
傳感器的連接端子和外殼尺寸和引線長度可根據客戶要求定製
服務業
1. 您的詢問將在 24 小時;
2. 訓練有素且經驗豐富的員工隨時為您服務.
3. 獨特設計嘅產品同眾多嘅私人模具產品等待您的選擇.
4. 嚴格保護您的私隱信息和您的設計理念.
常見問題
問1. 我可以訂購NTC嘅樣品啊, PT100、PT1000, RTDs （熱電阻）, 同Ds18b20傳感器?
一個: 係, 我哋歡迎樣品訂單測試和檢查質素. 混合樣品係可以接受嘅.
聯繫我哋
等待您的電子郵件, 我哋會在內回覆您 12 數小時，提供您需要嘅寶貴信息.
相關產品
NTC Temperature Sensor
What Is The NTC Temperature Sensor? NTC temperature sensor is an thermistor after the wire welding, encapsulate into a different probe and then use an epoxy seal. The temperature sensor retains all the features of the thermistor. After the optimization of the injection and cooling stages, will be made into a complete product, mass production is a continuous cycle of this processing step produced.
RTD PT100 Temperature Sensor Probe with Cable
What is a Platinum thermal resistance sensor?
An RTD (Resistance Temperature Detector) is a Platinum thermal resistance whose resistance changes with changes in temperature. Its resistance increases as the sensor temperature increases. The relationship between resistance and temperature is well known and repeatable over time. RTD is a passive device. It does not produce output by itself. External electronics can be used to measure the sensor resistance by passing a small current through the sensor to produce a voltage. Typically 1 mA or less measurement current, maximum 5 馬, without risk of self-heating.
