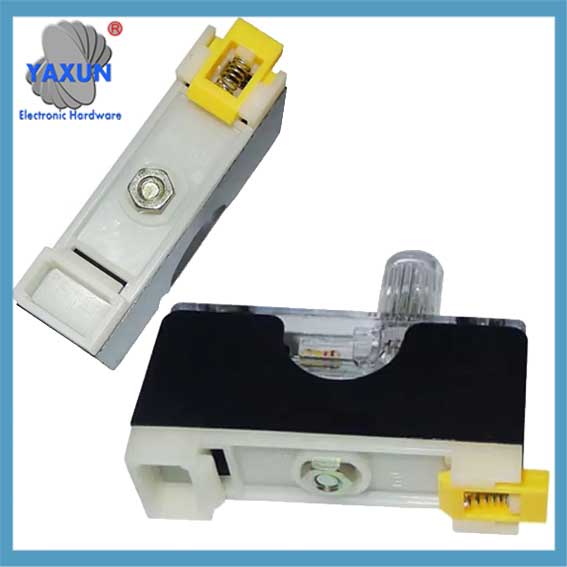

1-1/4 英制 DIN 導軌安裝保險絲座指示燈, FS-10, FS-101
120V / 250V 指示燈, FS-10, FS-101 DIN 導軌安裝保險絲座，適用於 6mmx30mm 保險絲. 1-1/4 吋X 1/4 英吋 英吋 . 35毫米導軌安裝, 高低槽安裝或直接螺絲安裝. 安裝方便. 熔斷管保險絲, 光警報, 易於維修和更換.
120V / 250V 指示燈, FS-10, FS-101 DIN RAIL MOUNT FUSE HOLDER for 3AG 6mmx30mm Fuse. 1-1/4 吋X 1/4 英吋 英吋 . Rated Voltage and Current 250V, 6.3A; Total Size 55 * 48 * 16毫米. 35毫米導軌安裝, 高低槽安裝或直接螺絲安裝. 安裝方便. 熔斷管保險絲, 光警報, 易於維修和更換.

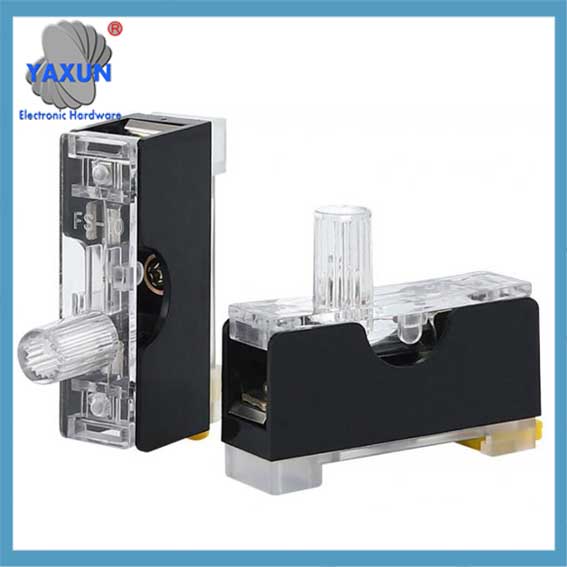

 10帶有 LED 指示燈的 35mm Din 導軌安裝保險絲座 3AG |

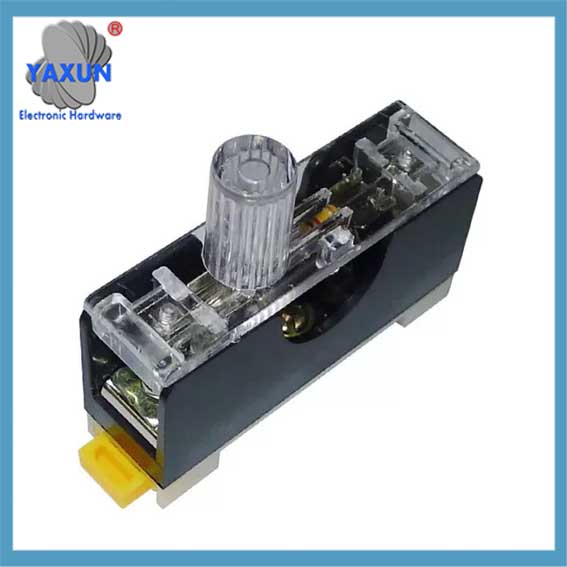

 保險絲座 FS-101, 適用於 6x30mm 保險絲的 DIN 導軌安裝 |
 1-1/4 inch x 1/4 inch din rail mount fuse holder. 120v / 250V indicator lamp |
| 商品名稱: | Fuse Holder | P/N: | FS-101 |
| Mounting Type B: | 35mm Din Rail Mount | 額定電壓: | 250V |
| Current Rating: | 10A | Breaking Capacity: | 50這 |
| Body Length: | 56毫米 | Body Width: | 16毫米 |
| Height: | 47.5毫米 | Knob Dia: | 10.5毫米 |
| Fuse Size: | 6×30 3AG | Fuse Amps: | 0.5A 1A 2A 3A 4A 5A 6A 8A 9A 10A |
| Net Weight: | 30g | 包裹: | 20pcs Per Box, 600pcs Per Carton |
| High Light: | 35mm Din Rail Mount Fuse Holder, 3AG Din Rail Mount Fuse Holder, 10A Fuse Holder | ||
產品描述
FS-101 3AG Fuse Holder Din Rail Mount 35mm Guide Rail 250V 10A Fuse Block with LED indicator Light for 6×30 Fuses
產品描述
| 商品名稱 | Fuse Holder, Fuse block, Fuse Box |
| 安裝類型 | 35mm Din Rail Mount |
| Electrical Rating | 10A 250V |
| Breaking Capacity | 50這 |
| Base Material | ABS |
| 端子材質 | Mn Steel |
| Cap Material | Polystyrene |
| Ambient Temperature | -10°C~70°C |
| Withstand Voltage | AC1500V(50HZ)/Min |
| Cap Type | Bayonet |
| 包裹 | 20pcs per box, 600pcs per carton |
| Net Weight | 30g |
- 零件編號: FS-101
- Suitable for 6×30 6×32 3AG fuses
- Fuse Amperes: 0.5A 1A 2A 3A 4A 5A 6A 8A 9A 10A
- Body Length: 56毫米
- Body Width: 16毫米
- Body Height: 30.5毫米
- Knob Length: 17毫米
特徵:
Led indicating for blown fuses
Excellent fire retardant materials
Convenient din rail mounting
Compact structure
Drawing of the FS-101 fuse holder
