NTC 熱敏電阻探頭和電纜

The NTC temperature probe is believed to be one of the temperature sensors that our customer partners in various industries are familiar with. Instead of TE Connectivity's NTC sensors, they can be found in dryers, 咖啡機, air conditioners in buildings, or in more high-precision automobiles, instruments and other fields in daily life.

It has the advantages of high sensitivity, 反應快, and flexible size and is favored by everyone. But at the same time, we also found that when facing some harsh environments, such as high-voltage environments, NTC needs a higher level of protection to isolate its sensing components from the high voltage in the application. Prevent the flow of current between the sensing element and the system to ensure that the sensing element and components are protected from arcing and faults, thereby providing continuously stable and accurate data collection to the system.

然而, your doubts in this regard can be cleared away!

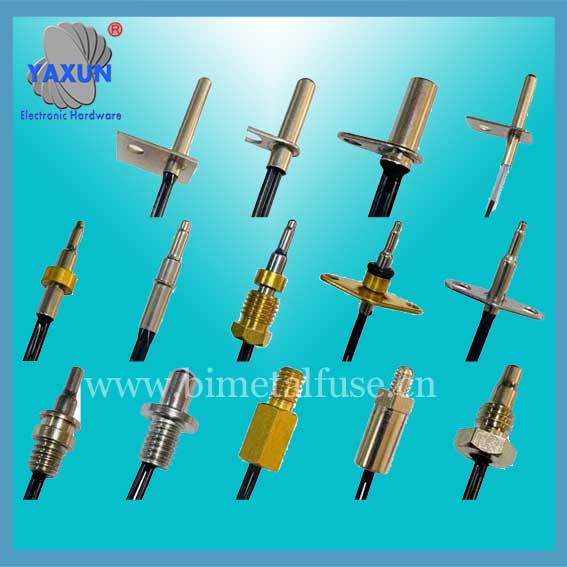

YAXUN has launched a new plug-in NTC temperature probe, which can maintain stable electrical isolation in high-voltage environments.

In harsh environments, predictive maintenance and asset monitoring applications must rely on robust, reliable sensing solutions. This plug-in NTC temperature probe detects overheating in industrial electrical equipment, providing accuracy and stability in environments with high voltage and temperature fluctuations.

E-meter temp sensor with short tube
Internal number: 20021955-00/2 pin/98.6 kΩ/25 °C/3942 K/±.23 @ 25 °C ± 1 @ 25 ℃ %;

PRO4-Overmolded Probe (3)
This probe consists of an NTC thermistor soldered to 24 AWG TPE stranded wire and enclosed in a copper housing. The accessory is overmolded, leaving the copper casing exposed. A metal clamp is attached to the final accessory.
ID: PIPE PROBE/Open End/10 kΩ/25 °C/3435 K/± 1 Mounting from 25 – 85 °C/±1 %/1/2 在. conduit;

NTC THERMISTOR ASSEMBLY
No.: A1004BT22P0 /Open end/10 kΩ/25 °C/3976 K/± .2 (0 – 70) ℃, ± .2 (0 – 70) °C/±.88 %/Nickel plated brass;

GLS9-MCD +/-15% 37'C 0.38MM
No.: GAG22K7MCD419/open end/22 kΩ/25 °C/3499 K/± 4.2 @ 37 °C/±15 %, small glass radial;

PRO2-PROBE
No.: GA10K4D25/10 kΩ /3694 K/± .22 %;

THR-A#-2251-D1-HDP-0.375"-0.080"-00-Z-32
Internal Number: 20015622-00 Open end 2.252 kΩ/25 °C/3976 K, ±.1 from 25 到 50 ℃, HDPE;

THR-A#-2251-D1-304-0.23"-0.11"-00-Z-32-2
No.: 20015623-00 Open end 2.252 kΩ/25 °C/3976 K/± .1 from 25 到 50 ℃, 不銹鋼;

THR-A#-1002-D1-HDP-0.375"-0.080"-00-Z-32
No.: 20015624-00/open end/10 kΩ/25 °C/3976 K/± .1 from 25 到 50 °C/HDPE

THR-A#-1002-D1-304-0.23"-0.11"-00-Z-32-2
No.: 20015625-00/Open end/10 kΩ/25 °C/3976 K/Tolerance ±.1 from 25 到 50 °C/Stainless steel probe;

PY-A1002C8-PY-.28"-.019"-I-38-2-7.0"-0
No.: 20015975-00/Open end/10 kΩ/25 °C/3976 K/Tolerance ±.1 from 25 到 50 °C/Small polyimide tube;

8x30MM PVC OVERMOLDED 1m
Internal number: 20025136-01/open end/4633 kΩ/25 °C/3992 K/± 1, % at 0 ℃;

8x30MM PVC OVERMOLDED 2m
No.: 20025136-02/open end/4633 kΩ/25 °C/3992 K/± 1, % at 0 ℃.
